Oписание продукта

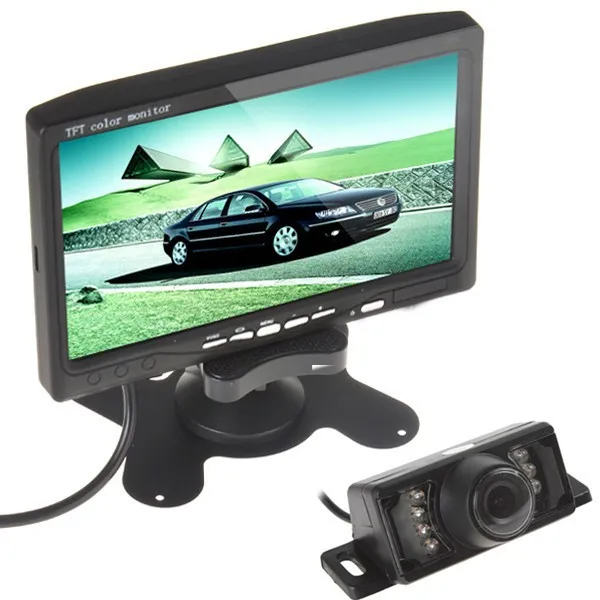

7 Inch TFT LCD Color Car Rear View DVD VCR Monitor + 7 IR LED Lights Car Rear View



This is a new color TFT LCD display car rear view monitor with 7 inch LED backlight, support parking rear view priority. It comes with an IR remote controller for a easy operation. Working perfectly with Car DVD, VCD, camera, STB, satellite receiver, and other video equipment. And the car rear view camera is perfect to display a reversed camera image on the monitor to duplicate the normal view seen in a rear view mirror.











































  • Specifications:

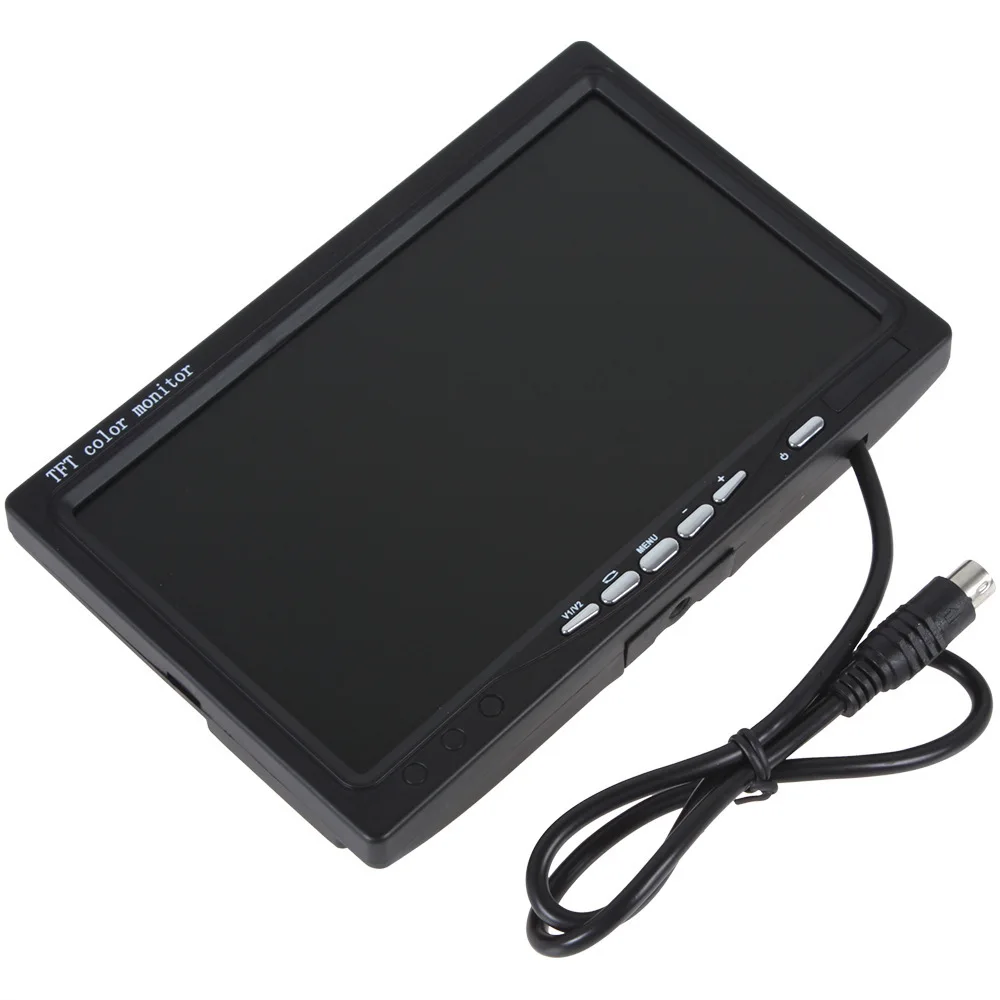

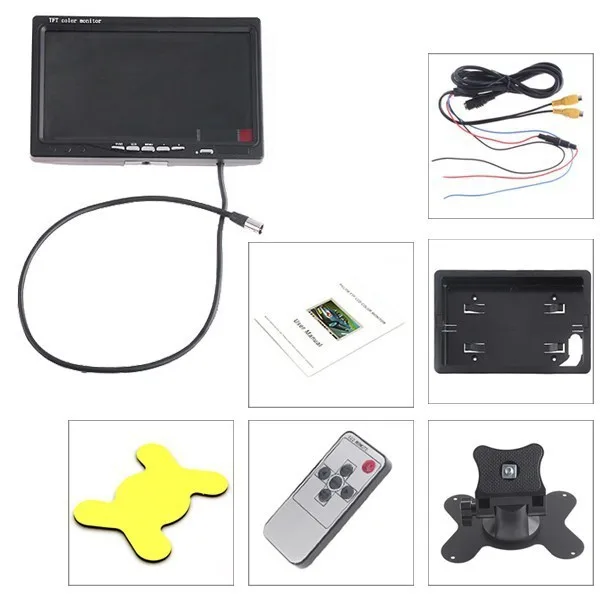

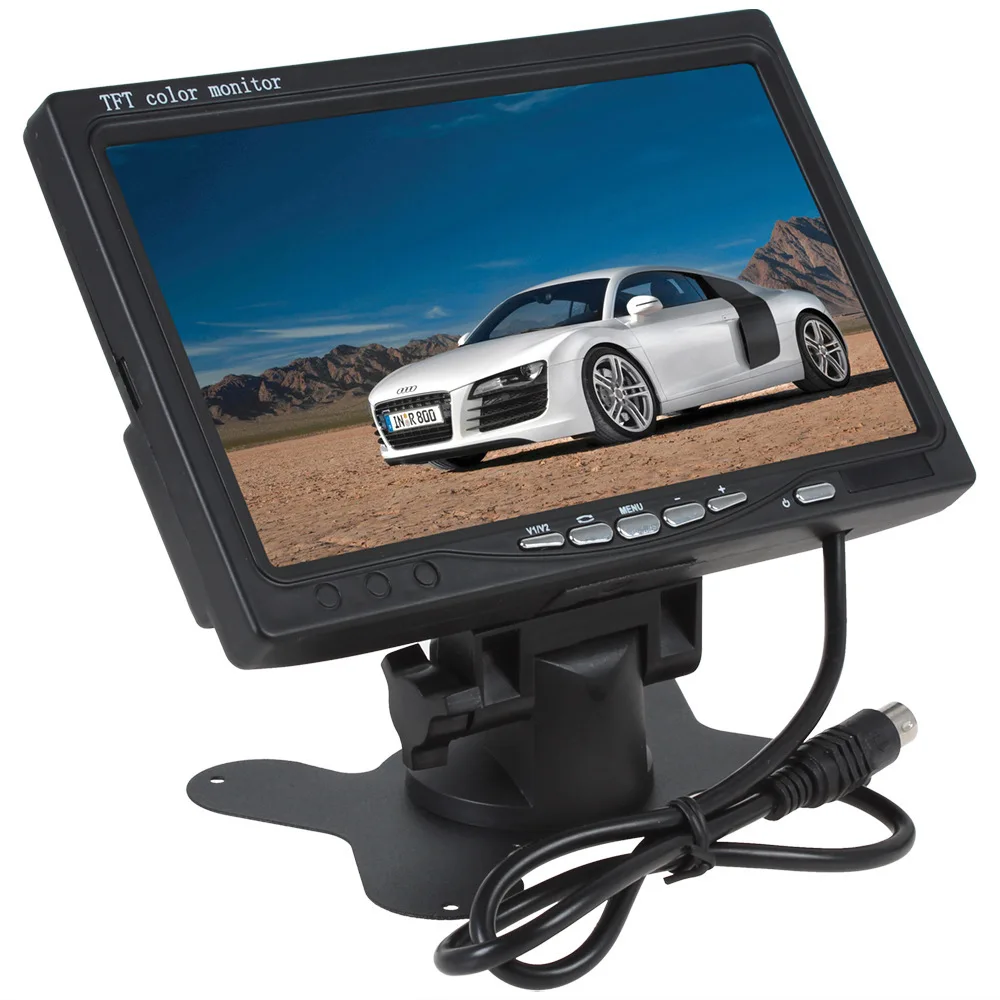

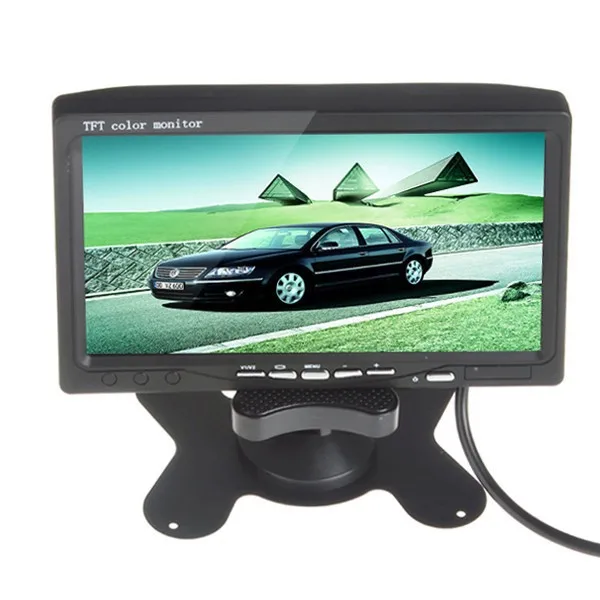

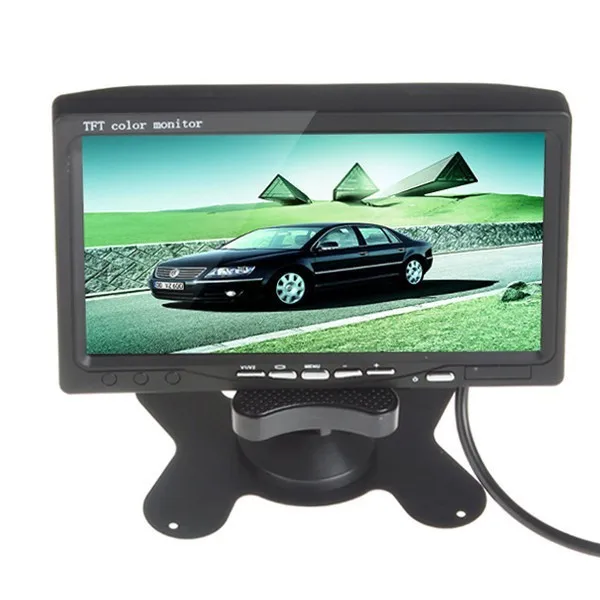

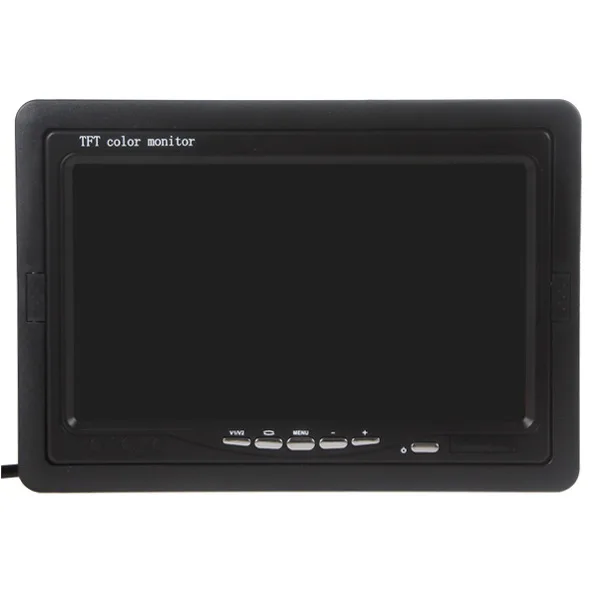

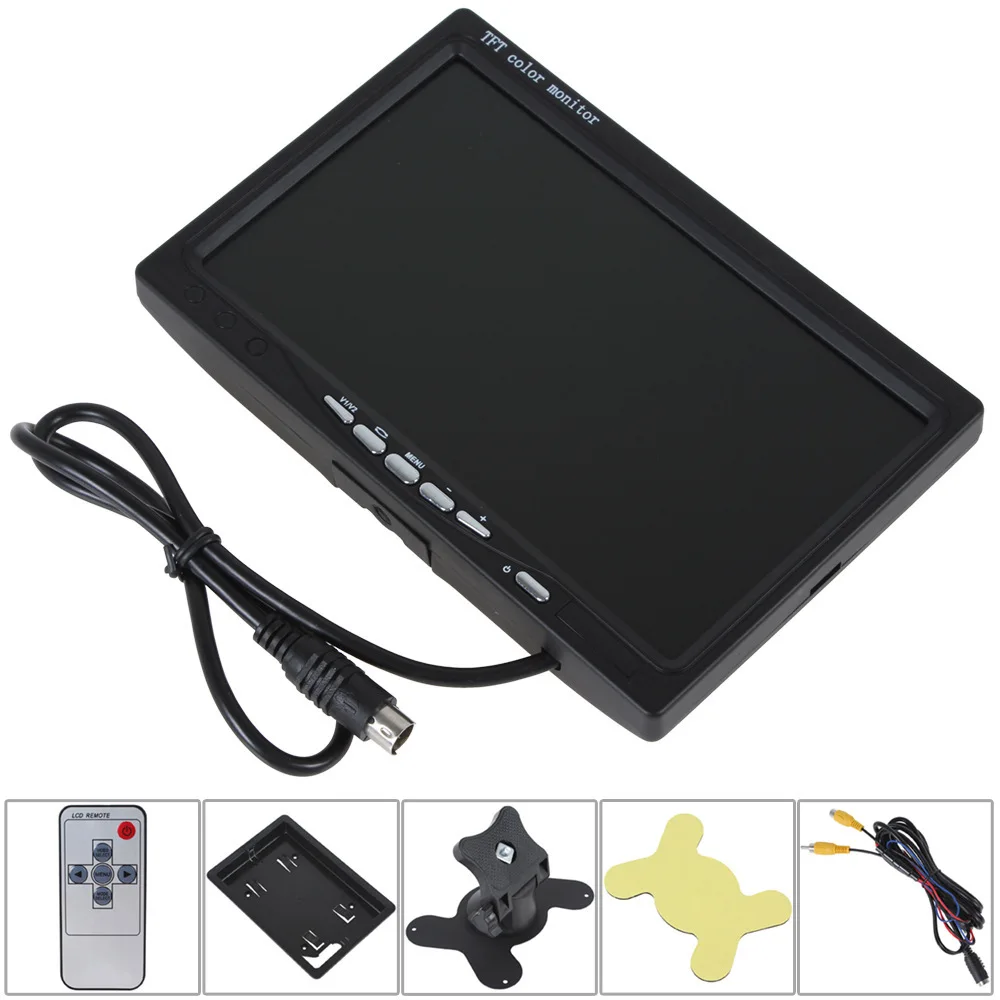

  • 7 Inch TFT LCD Color Car Rear View DVD VCR Monitor
  • Main function:
    - 100% Brand New, with 7 inch LED backlight color TFT LCD display monitor.

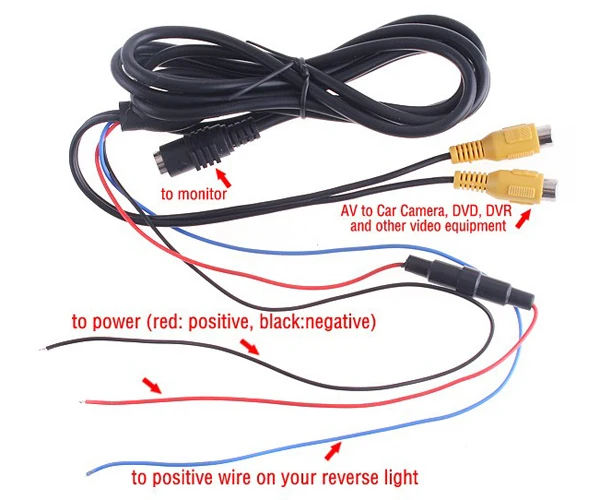

    - With 2 AV input. AV1 connects to car DVD, VCR and other video equipment. AV2 to car backup camera.
    - Parking rear view priority: The monitor will start up automatically, and synchronously display the video from rear view camera when you\\\\\\\'re backing your car; the monitor will close itself after backing.
    - Scenes will cut to rear view camera automatically while you\\\\\\\'re backing the car and change back to the original scene after that.
    - Blue wire is for displaying car reversing image automatically when it\\\\\\\'s connected with a rearview camera.You need to adjust it manually if the blue wire is not connected.
    - Support rotating the screen for easy view.
    - Support adjust the Brightness, contrast, color.

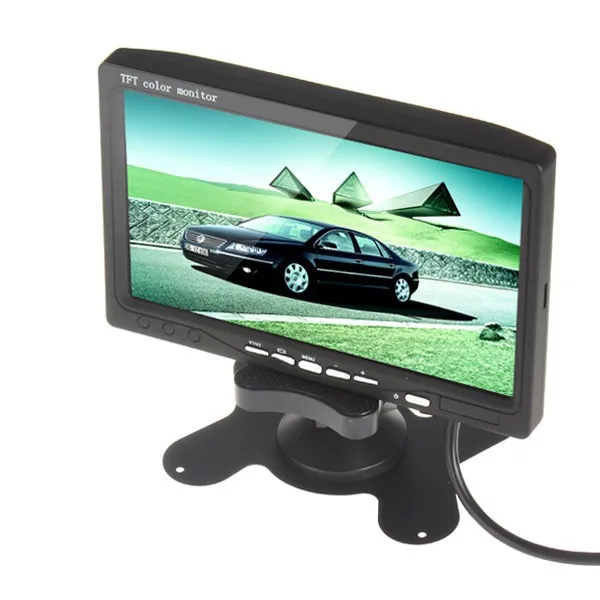

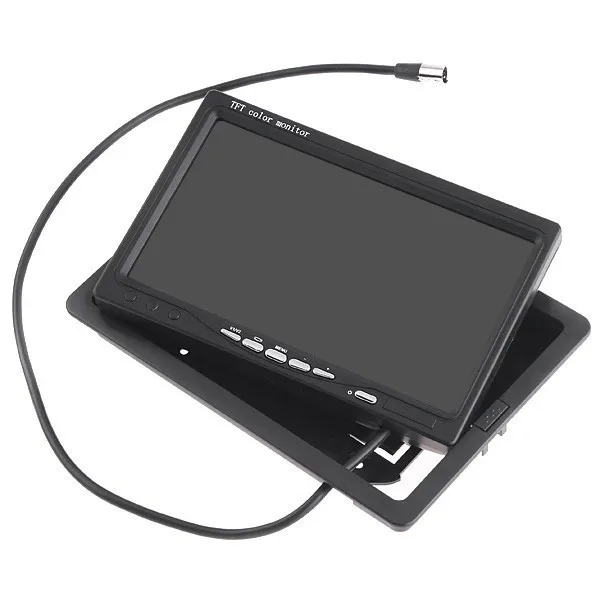

    - 2 ways to install: standing or mounting.
    - Low power consumption, long lifetime.
    - No Audio input or output.
    - Comes with an IR remote controller for a easy operation.
    - Working perfectly with Car DVD, VCD, camera, STB, satellite receiver, and other video equipment.
  • Display Screen:
    - Screen Size: 7 inch
    - Display Component: Color TFT LCD
    - Screen ratio 16:9 / 4:3 adjustable
    - Resolution: 480 x 234 Pixels
    - Contrast Ratio: 100 : 1
  • Housing Material: ABS
  • Video Frequency: PAL / NTSC
  • Power supply: DC 12V
  • Working Temperature:
    - Work: 0 to 80 degrees C
    - Storage: -10 to 80 degrees C
  • Product Dimensions(L x W x D): 193 x 135 x 25mm
  • Monitor Weight: 381g

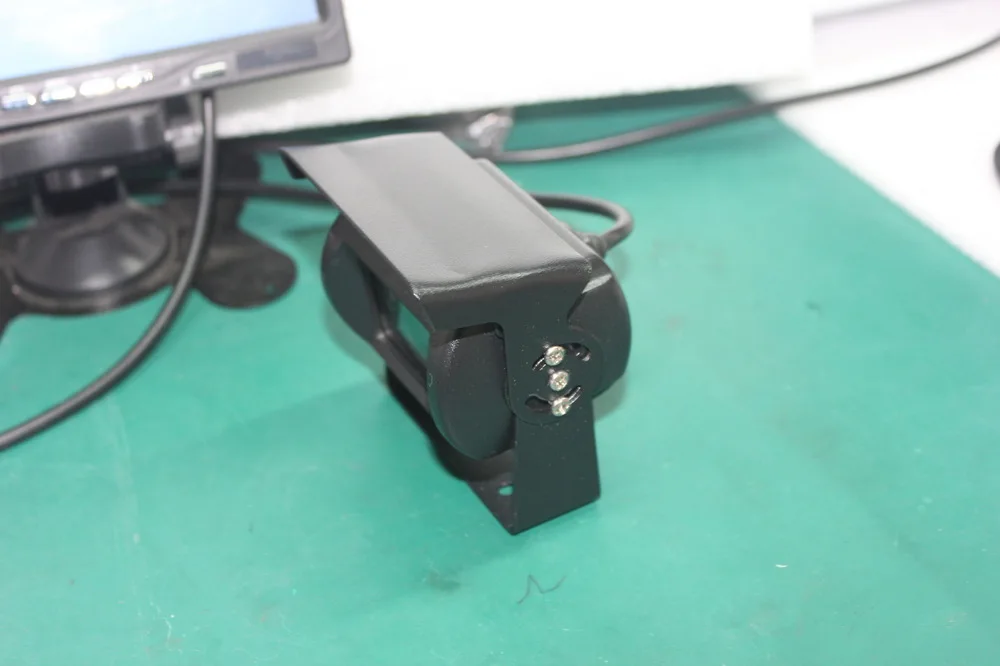

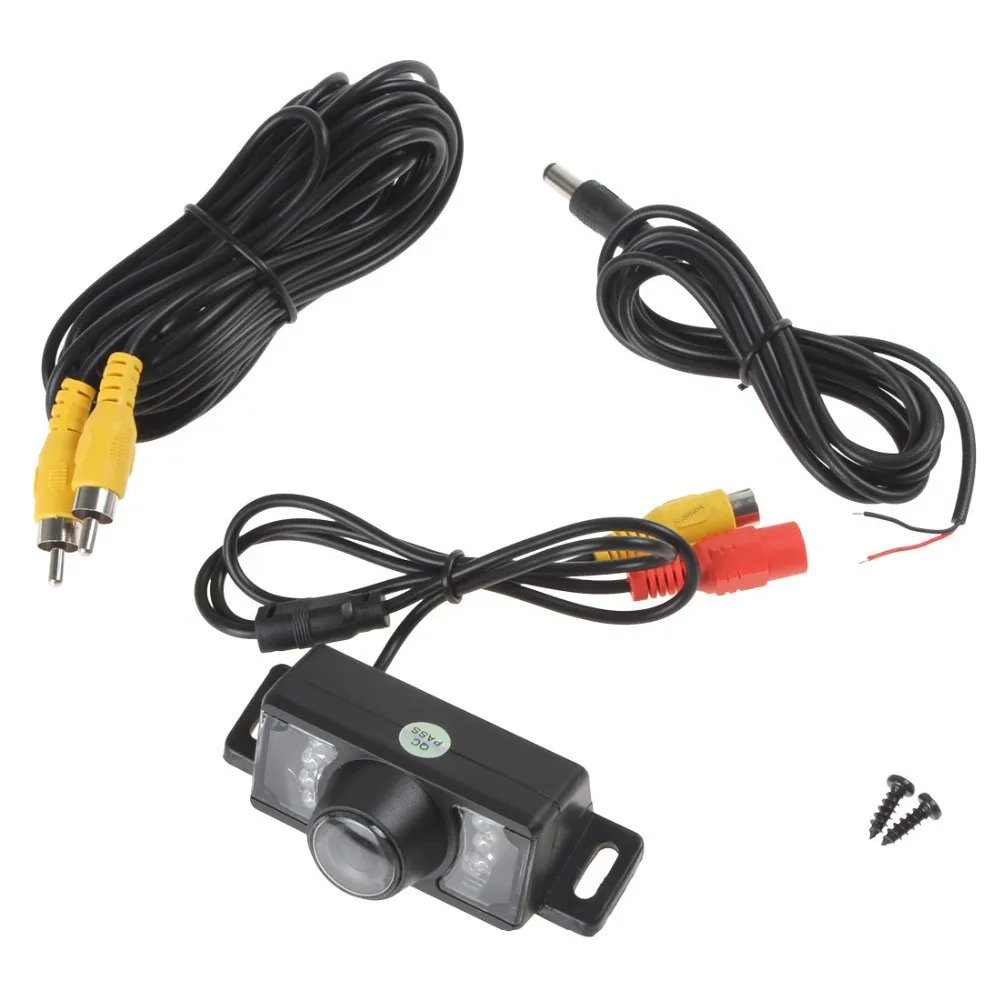

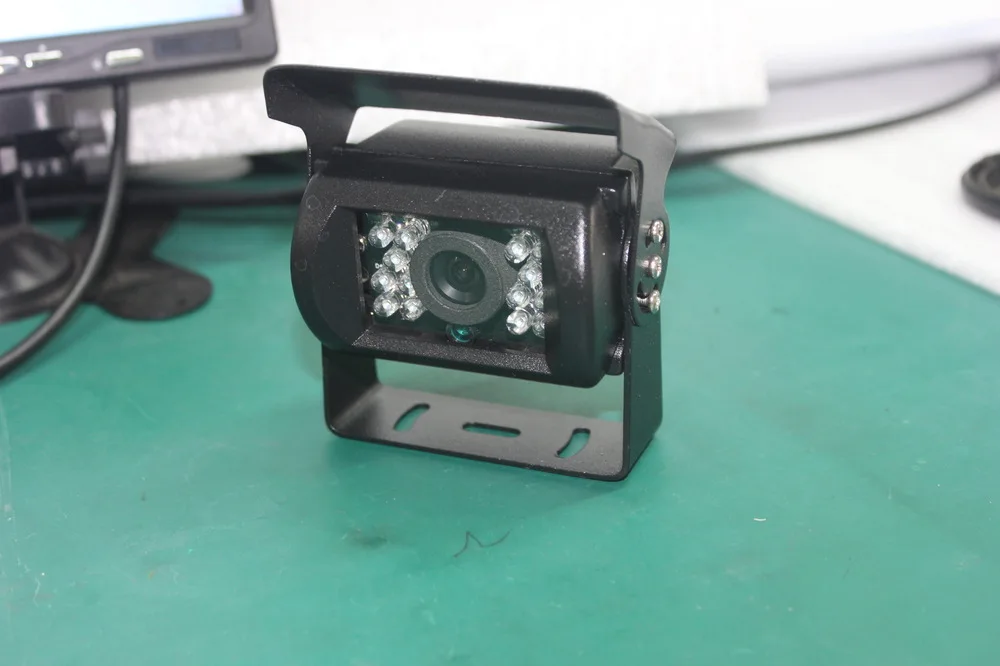

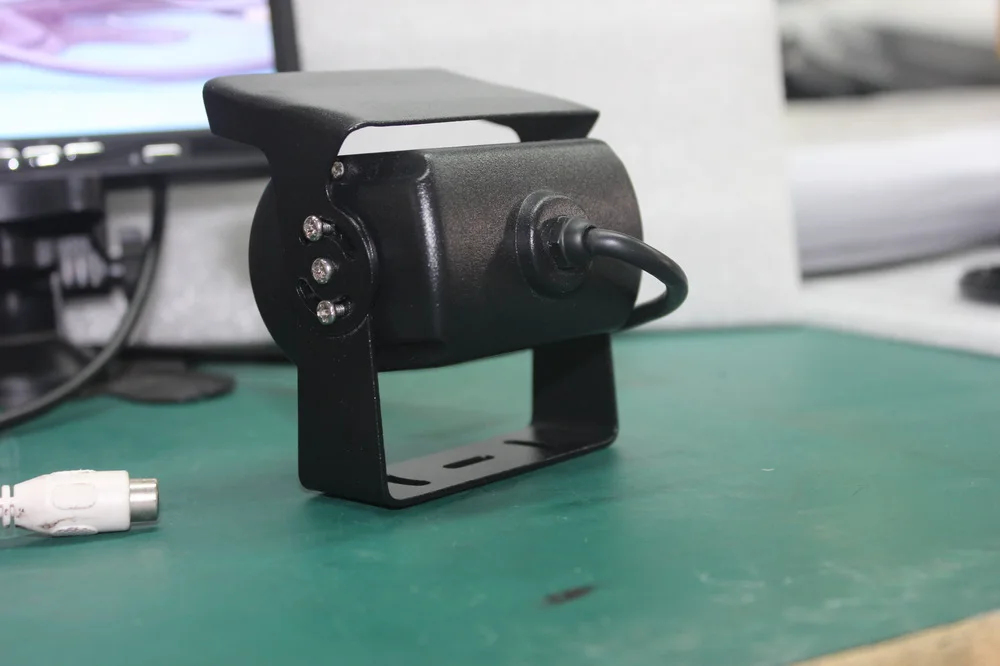

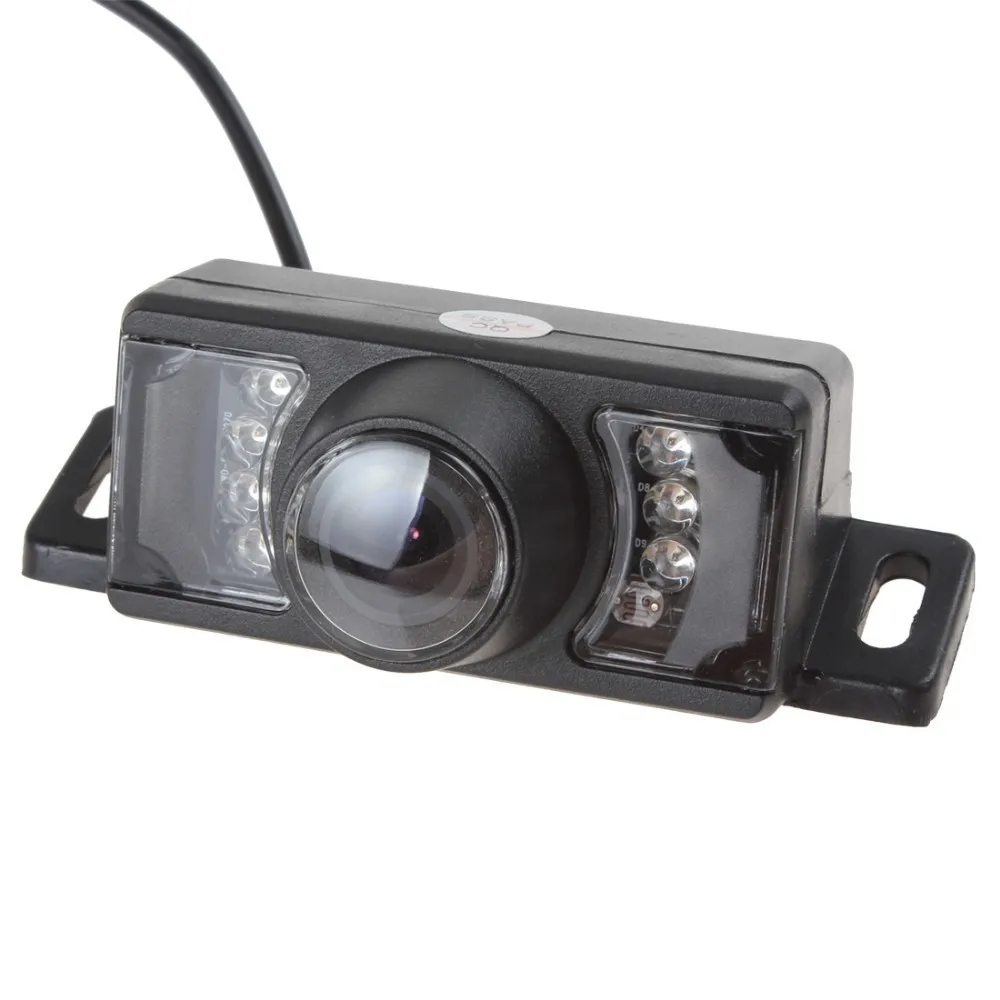

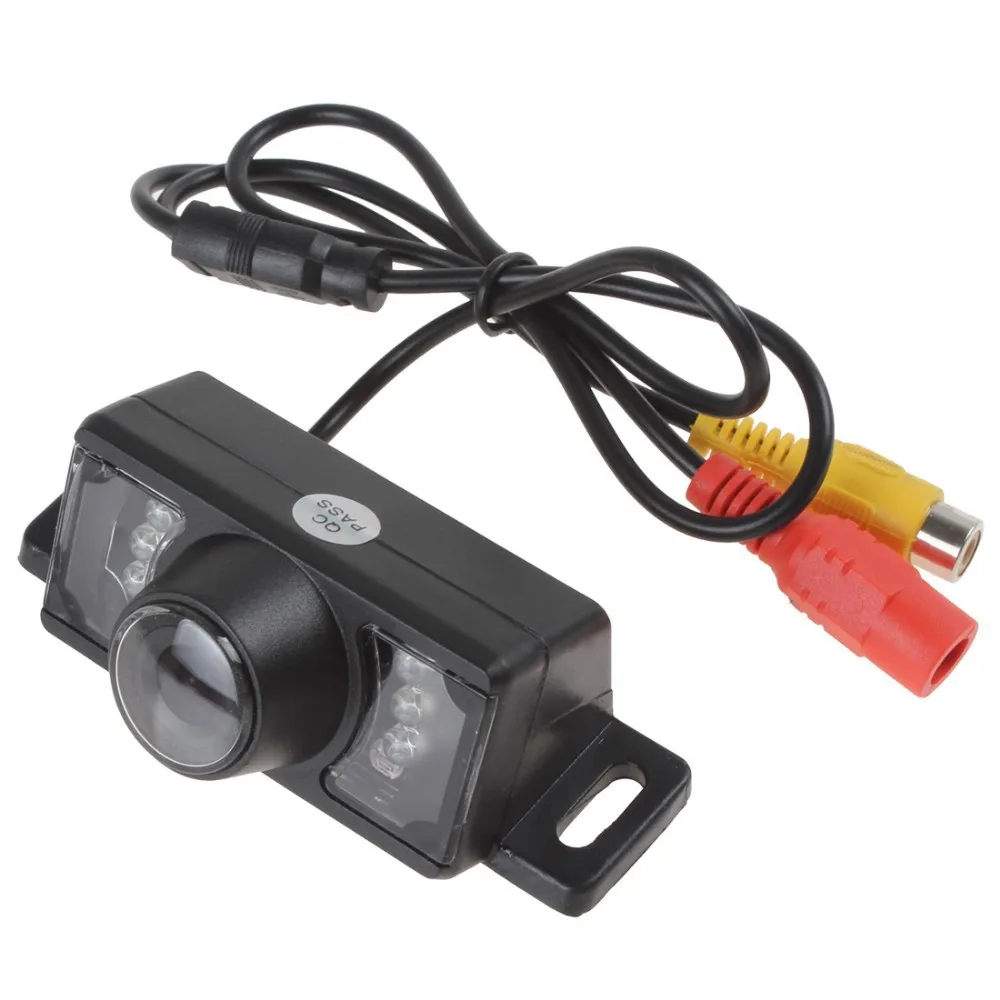

  • 7 IR Lights Car Rear View Camera:
  • Main Features:
    - High-definition & High-sensitivity - 420TV lines.
    - Waterproof, Weatherproof, Shockproof function.
    - Support night vision.
    - 170 degree wide viewing angles.
  • Image Sensor: Color CMOS / CDC
  • TV System: NTSC / PAL
  • Effective Pixels:
    - NTSC: 728 x 628 828 x 686
    - PAL: 628 x 586
  • Scanning System: 2 : 1 Interface
  • Sync System: Internal
  • Resolution: 420 TV lines
  • Lens Angle: 2.8mm / 120 ~ 1.8mm / 170 Degree
  • Sensor Area: 5.961 x 4.276mm
  • Video Output: 1.0Vp-p, 75ohm
  • S / N Ratio: More than 48db
  • Waterproof: IP68
  • White Balance: Auto
  • Power: 60mA
  • Consumption: Max 300mA with IR on
  • Power Supply: DC 12V
  • Operating Temperature: - 20 ~ + 80 Centigrade
  • Storage Temperature: - 40 ~ + 80 Centigrade
  • Camera Net Weight: 54g
  • Package Weight: 180g
  • Approved: CE / FCC
  • After Sales Service: 1 Year Warranty
