Ultrable 12v 100ah lithium ion battery for electric car free shipping

Ultrable 12v 100ah lithium ion battery for electric car free shipping
  • Продавецalatbantusex.us
  • Список ценUS $295.50piece
  • Продажная ценаUS $295.50piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,8 (579)

Oписание продукта

Please attention for every customer : our battery pack can be customized , you offer the size and desigh photo we supply you good quality goods !   t

If customer customize the goods with size and capacity , we may need at least 7 days lead time .  the size and weight we give as the reference !

Here is our battery pack 12v100ah parameters as reference !  (Attention: our 12v battery pack cannot make in series when voltage pass 30V , or the BMS will be broken )



Cell

model

1602258

Capacity(0.5C)

20Ah

Rated voltage(V)

3.2V

Typical Impedance (mΩ)

≤1.1mΩ

 Battery material

Lifepo4



PACK

Combination method

4 Series 5 Parallel

Minimal capacity

≥100Ah

Nominal voltage

12.8V

Max. charge voltage

14.6V

Discharge cut-off voltage

≤10.5V

Max continuous charge current

50A

Max continuous discharge current

250A

Instantaneous Current ( 1 second )

1200A

Weight (Approx.)

13KG

Max. dimension(L×W×H)(mm)

325*170*220mm



Operating  temperature

Charge temperature

0℃~45℃

Discharge temperature

-10℃~55℃

Protection Board (BMS)

Single cell over-charge cut-off voltage

3.85V

over-charge release voltage

3.65V

Single cell under-discharge cut-off voltage

2.3V

Discharge release voltage

2.5V

Over-discharge cut-off current

250A

Over-discharge cut-off current delay

1.5S

Short-circuit protection

Yes

Short-circuit protection delay

500uS



Condition for the recovery of over-current and Short-circuit

self

Balance current

45mA

Balance Condition

3.60V

communication

NO

Note:  Buyers who buy this battery, must agree that you are familiar with the safe use of lithium battery Knowledge. Any Broken by humans , we will not be in charge serving the battery.

Safety Reminder: diy assembled when good protective measures, Wear protective goggles, insulated gloves.



Main uses:

Large electric vehicle: vans,motor home, caravan ,electric golf carts, buses, electric cars, sightseeing cars and hybrid vehicles DIY

Light electric vehicle: electric bicycle, small flat electric car, forklift, cleaning vehicles, electric wheelchair

Power tools: electric drill, electric saw, lawn mower

Remote control cars, boats, aircraft and other toys

Solar and wind power energy storage equipment

UPS and emergency lights, warning lights, miner\'s lamp (best safety) all can sent by battery pack .



*We provide 12 months warranty*

Attention : help to discharge the current quickly , we change the terminal to be bronze material ,

​more safe , less heat !!!


Our Advantage:

1) Long cycle life

2) Maintenance-free operation

3) Good safety performance

4) Low self-discharge and fast charge

5) Environment friendly

6) High capability and stability

7)Our photos

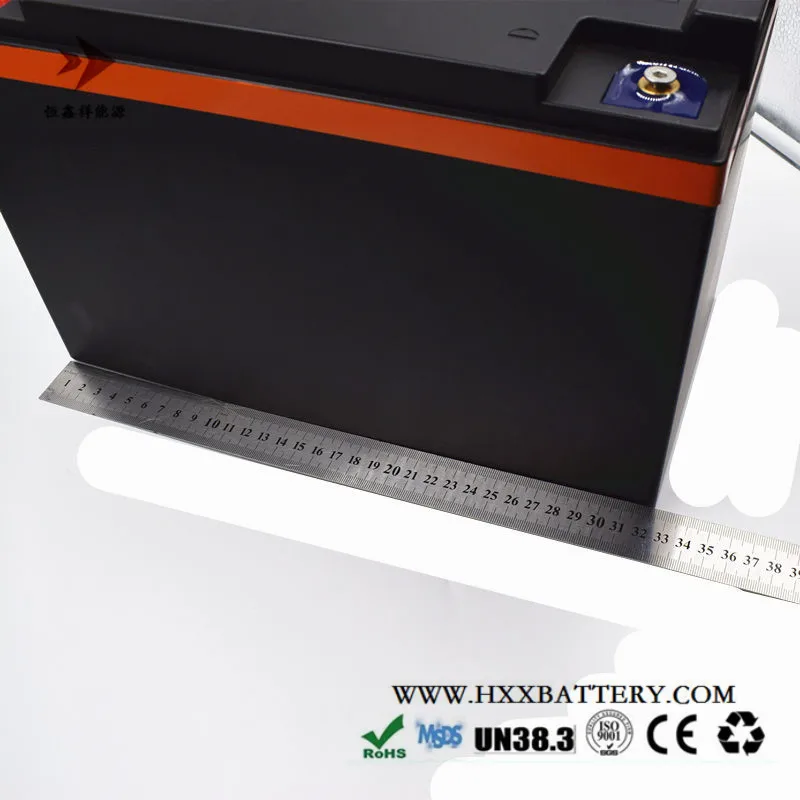

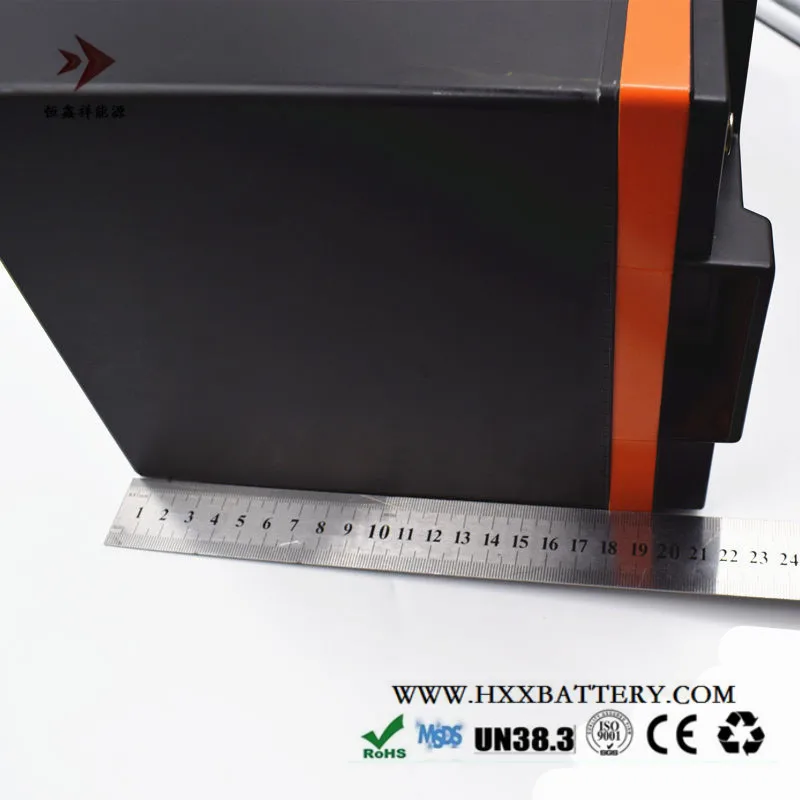

DSC_0175__DSC_0178__DSC_0179__DSC_0180__DSC_0181__DSC_0182__

About Prices : Dear Customers ,if you wanna to be our long business partner , you can share your email box , whatapps,skype ,facebook etc. here



Shipping

1. we usually send out battery by international commercial express, UPS ,FedEx ;but now battery belong to some dangerous goods in some countries , so we send them by special line .

2. It takes 5-10 days by express send to destination ( not including the Lead Time ) ,if send by special line may takes more than 20 days .

​3. Battery goods belong to sensitive items , we produce the best battery , so welcome customer come to our warehouse

1_2_

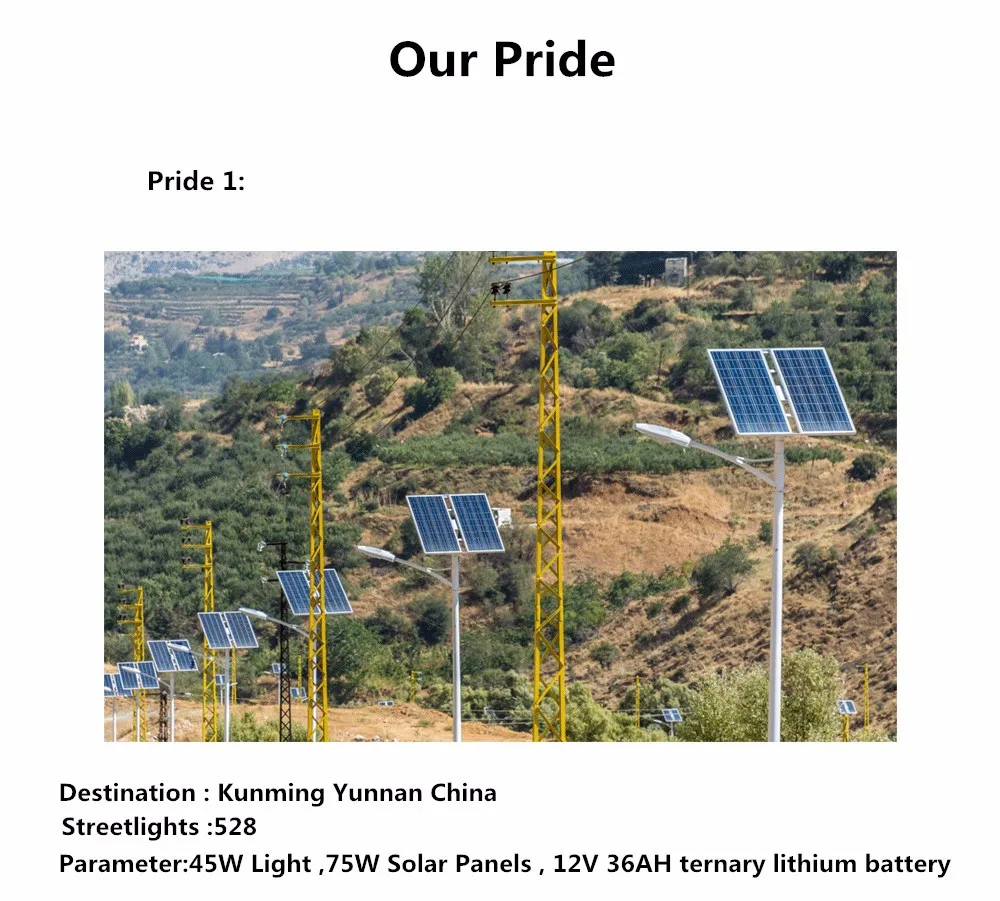

Our Achievement

1_3_
